Camera

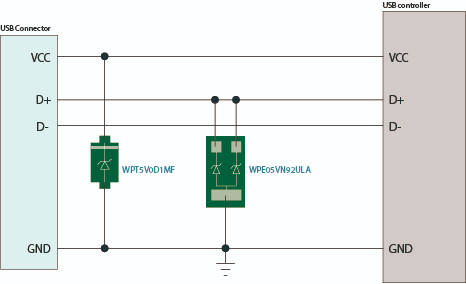

1.1 ESD and Surge Protection Using WPT5V0D1MF & WPE05VN92ULA

USB 2.0 typically employs line-to-ground ESD and surge protection technology, with a maximum signal rate of 480Mbit/s. A SOD-123FL package TVS is used between VCC and GND, providing ESD protection up to 30KV. For the signal lines, a small-package DFN1006-3L low-capacitance ESD suppressor is selected for protection, offering ESD protection up to 20KV.

Compliant with standards: ESD IEC 61000-4-2 Level 4, Surge IEC 61000-4-5

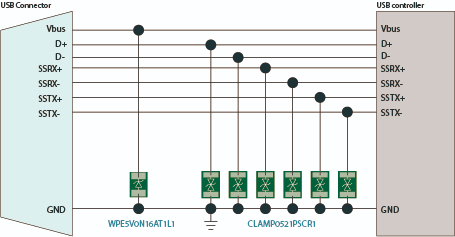

2.1 ESD and Surge Protection Using WPE5V0N16AT1L1 & CLAMP0521PSCR1

Compared to previous versions, the USB3.2 interface features faster transmission speeds, with a data transfer rate of up to 10Gbps. It adds SSRX+/SSRX-/SSTX+/SSTX- differential signal pairs compared to USB 2.0, requiring enhanced ESD and surge protection capabilities. The signal lines utilize a chip-scale CSP0603-2L ultra-low capacitance ESD suppressor for protection, which occupies minimal PCB area and provides ESD protection up to 20KV. Vbus is protected using a small-package DFN1610 ESD suppressor, offering ESD protection up to 25KV.

Compliant with standards: ESD IEC 61000-4-2 Level 4, Surge IEC 61000-4-5

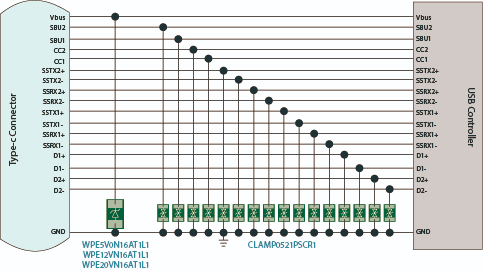

3.1 ESD and Surge Protection Using CLAMP0521PSCR1 & WPEXXXN16AT1L1 Series

The USB3.2 Gen2x2 protocol Type-C interface supports a signal transmission rate of up to 20Gbps and is compatible with the PD fast charging protocol, supporting up to 20V/5A. Type-C not only enhances data transfer speed but also increases power delivery capacity. The signal lines are protected using a chip-scale CSP0603-2L low-capacitance ESD suppressor, which occupies minimal PCB area and offers ESD protection up to 20KV. Vbus is protected using a small-package DFN1610 ESD suppressor, providing ESD protection up to 25KV.

Compliant with standards: ESD IEC 61000-4-2 Level 4, Surge IEC 61000-4-5

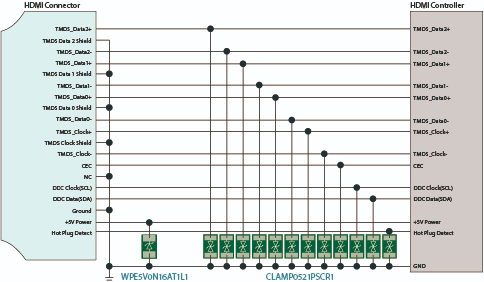

4.1 ESD and Surge Protection Using WPE5V0N16AT1L1 & CLAMP0521PSCR1

The widely used HDMI 2.1 version currently supports a maximum transmission rate of up to 48Gbps. Given the high-speed and multi-channel signal transmission of the HDMI interface, it is essential to prevent ESD transient pulses during product usage from interfering with normal HDMI communication or potentially damaging the HDMI interface control chip. The signal lines are protected using a chip-scale CSP0603-2L low-capacitance ESD suppressor, which occupies minimal PCB area and offers ESD protection up to 20KV. The 5V Power line is protected using a small-package DFN1610 ESD suppressor, providing ESD protection up to 25KV.

Compliant with standards: ESD IEC 61000-4-2 Level 4, Surge IEC 61000-4-5

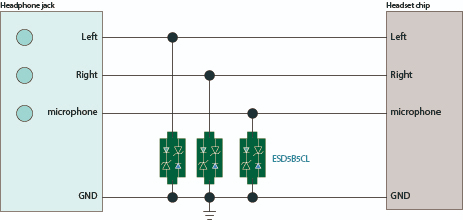

5.1 ESD and Surge Protection Using ESD5B5CL

The headphone jack outputs AC power, with voltage related to the volume level, a maximum amplitude of 1V, and an operating frequency of less than 30kHz. The signal lines are protected using a small-package SOD-523 ESD suppressor, offering ESD protection up to 20KV.

Compliant with standards: ESD IEC 61000-4-2 Level 4, Surge IEC 61000-4-5

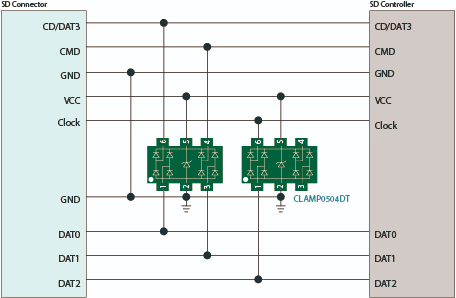

6.1 ESD and Surge Protection Using CLAMP0504DT

SD cards are a new generation of memory devices based on semiconductor flash memory. Due to frequent hot-swapping, they are highly susceptible to electrostatic discharge, with transmission speeds reaching up to 312MB/s. Protection is provided by a small-package SOT23-6L array ultra-low capacitance ESD suppressor, offering optional ESD protection up to 30KV.

Compliant with standards: ESD IEC 61000-4-2 Level 4, Surge IEC 61000-4-5

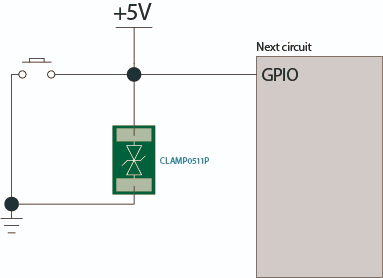

7.1 ESD Protection Using CLAMP0511P

Key positions are frequently affected by electrostatic discharge from human touch. Electrostatic protection is particularly necessary when the gaps around keys in small electronic devices are relatively large. Keys are typically controlled by the MCU GPIO, which operates at a low transmission rate, with a maximum GPIO toggle speed of up to 18MHz. Protection is provided using a small-package DFN1006 ESD suppressor, offering optional ESD protection up to 30KV.

Compliant with standards: ESD IEC 61000-4-2 Level 4
